ICE xTOP™

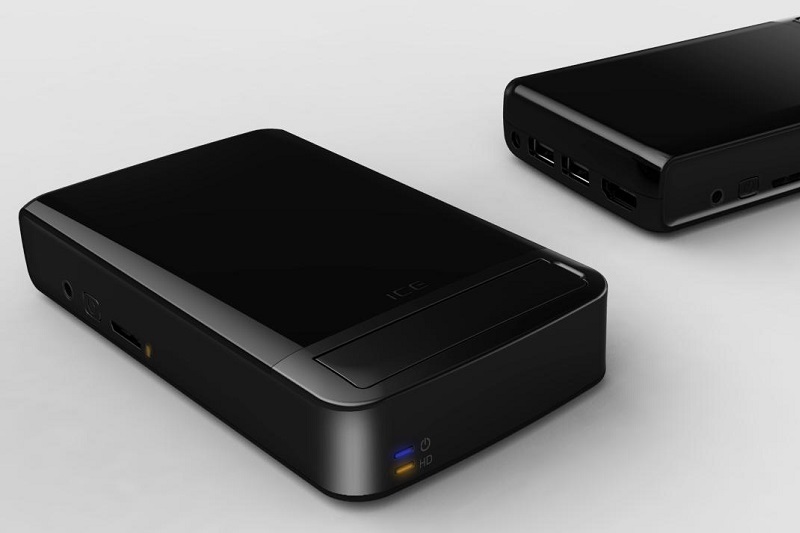

An ultra small docking unit, the ICE xTop™ gives you 6-in-1 access to your peripherals. Dock your ICE xPC™ to create a mini-desktop, set-top-box, or game box and discover the power of modular computing.

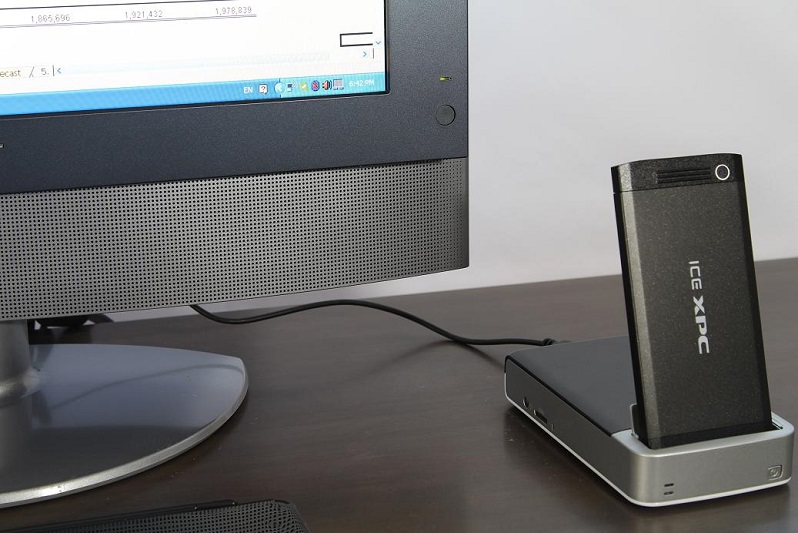

The inventive ICE xTop™ brings the mini-desktop to an entirely new level. “Hot” connect it with your current PC for instant 6-in-1 access to peripheral devices. Cold dock your ICE xPC™ to create your modular, fully-integrated ultra mini-desktop.

Ideal for start-up companies or established enterprises that are ready to cast off the shackles of legacy hardware, the ICE xTop™’s versatility provides computing power where you need it. Simply plug any ICE xPC™ into the xTop for the ultimate mobility solution.

SPECIFICATIONS

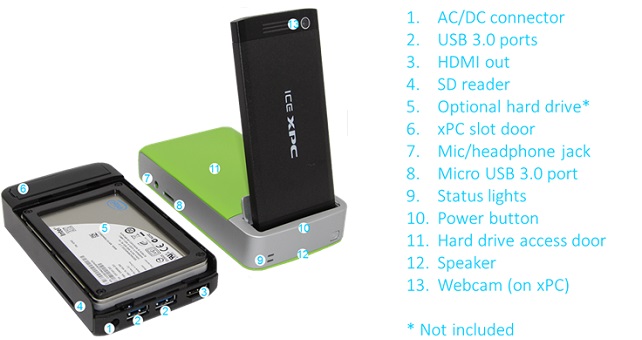

Host Interfaces:
40 pin xPDMI connector
Micro USB 3.0 connector

Internal 6-in-1 Built-in:

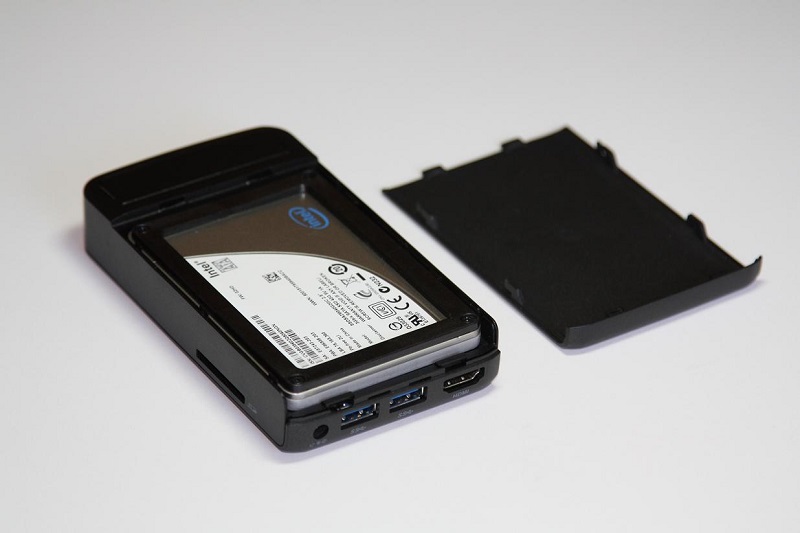

2.5” SATA hard drive connector Speaker
Digital microphone
3.5-mm headphone mini jack
Two USB 2.0 ports
Micro SD card reader

External Display Connector:
HDMI output port

BENEFITS

  1. Ultra portable 6-in-1 docking unit
  2. Modular ICE xPC™ component
  3. Acts as standalone hard drive for added storage
  4. Simple and low-cost
  5. Facilitates data transfer between non-networked computers
  6. Plug-and-play

FEATURES

  1. 2.5” hard drive case sized form factor
  2. Modular computer docking device
  3. Plug-n-play by hosting devices
  4. USB 3.0 data transfer rate
  5. 6-in-1 peripherals and ports, including 2.5” SATA Hard Drive connector
  6. HDMI output port
  7. Supports hot external connection, and cold ICE xPC™ docking



Technical Details

General Specification
DATA TYPE  DATA
Brand Name  ICE
Series  x86
Series Number  TOP 2013
Hardware Platform  PC
Operating System  Decided by connected xPC™
Item Weight  TBD
Item Dimensions
L x W x H
5.26 x 3 x 1 inches
(133.6 x 76.2 x 25.4 mm)
Color  Black
xPC™ Connector 40 pins male xPDMI (extended PDMI)
Power Source AC
Model Specification
Interfaces
DATA TYPE  DATA
Model Number TOP2013-001
Internal 2.5” Hard Drive SATA Connector One
Speaker TWO
Microphone One digital
Headphone minijack One 3.5mm
USB 2.0 Ports Two
Micro USB 3.0 Port One
SD Reader ONE
HDMI Output Port ONE


"Specifications are subject to change without notice."
