ICE xPad™

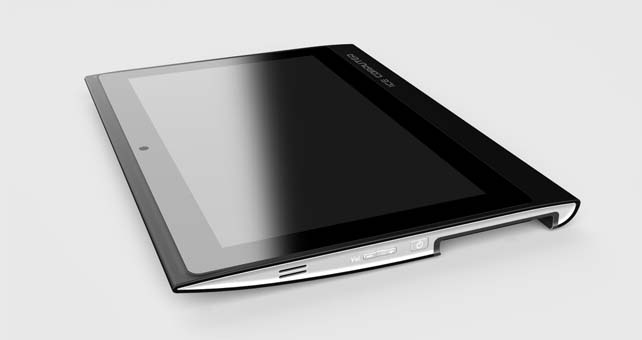

A fresh approach to mobility, the ICE xPad™ portable display instantly transforms into an elegant pad, tablet, or laptop with the ICE xPC™.

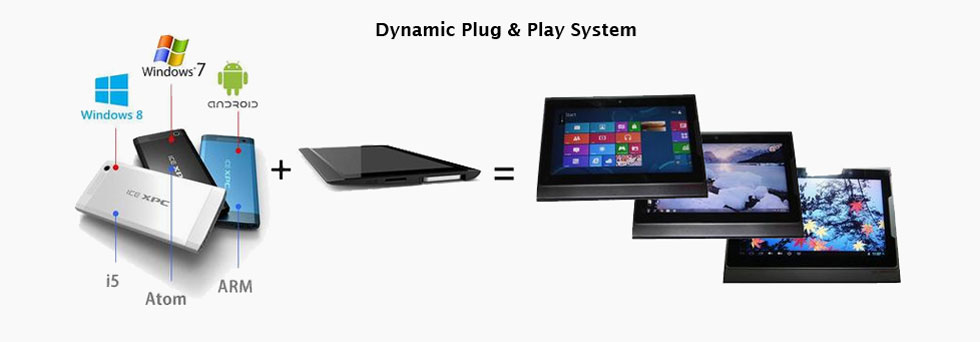

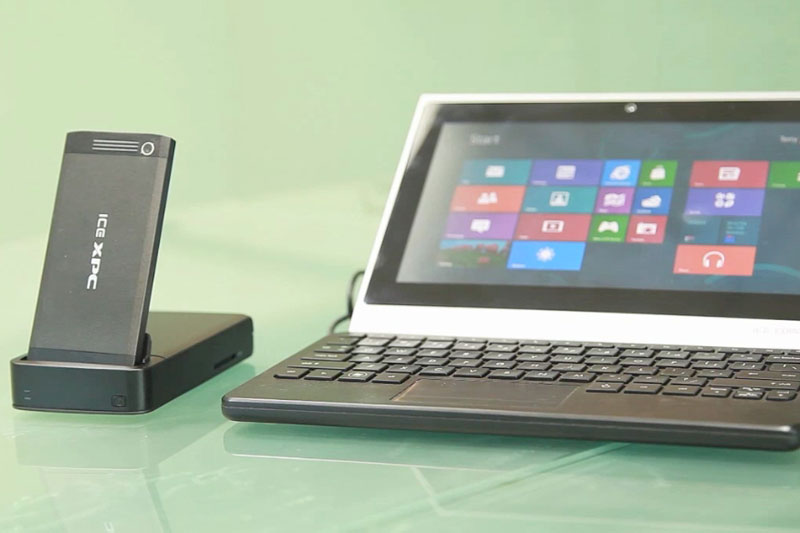

ICE xPad™ is a novel approach to mobility. Combine this portable display docking station with any ICE xPC™ to create your Android pad or Windows tablet. Place the ICE xPad™ on the ICE xKeyboard™ and you have a notebook, a perfect solution for taking notes during a class or in a meeting, working on documents, or managing your email.

Give your smartphone a chic external display (mobile high-definition link required) with a convenient, expanded view. Utilize the ICE xPad™ for your important phone calls, texting, or to listen to your favorite tunes.

When you are ready to move on, position the keyboard over the xPad™ for an added degree of protection for your xPad™ screen.

SPECIFICATIONS

Host Interfaces:
40-pin xPDMI connector
MHL connector

Internal Built-in:
SATA SSD connector
Two speakers
Two digital microphones
3.5-mm headphone mini jack
Two USB 2.0 ports
Webcam module
30Wh battery set

External Display Connector:
HDMI output port

BENEFITS

  1. Ultra portable display docking unit
  2. Modular docking device
  3. Multi-functional display device
  4. Adding storage space for host
  5. Host data available whenever you need it
  6. Plug-and-play

FEATURES

  1. Modular computer docking device
  2. Multiple functions mobile display
  3. Plug-n-play by hosting devices
  4. USB 3.0 data transfer rate
  5. Internal SSD connector for extra storage
  6. Built-in USB, audio, and MHL ports, and Webcam and speaker modules
  7. Built-in HDMI output port
  8. Support Cold docking



Technical Details

General Specification
DATA TYPE  DATA
Brand Name  ICE
Series  x86
Series Number  PAD 2013
Hardware Platform  PC
Operating System  Decided by connected xPC™
Item Weight  TBD
Item Dimensions
L x W x H
10.25 x 7.5 x 0.58 inches
(260.3 x 190.5 x 14.9 mm);
Color  Black
xPC Connector 40 pins male xPDMI (extended PDMI)
Power Source AC
Model Specification
Interfaces
DATA TYPE  DATA
Model Number PAD2013-101
Display Size 10.1”
Display Resolution 1920 x 1200
Touches 10 points
Internal SATA SSD Connector One
Webcam 2M
Sensors Ambient light sensor
MHL connector One
Speaker Two
Microphone Two digital
Headphone minijack One 3.5mm
USB 2.0 Ports Two
SD Reader One
HDMI Output Port One
Battery TBD


"Specifications are subject to change without notice."
