ICE xAdapter™

  • Specifications
  • Features

ICE x Adapter™

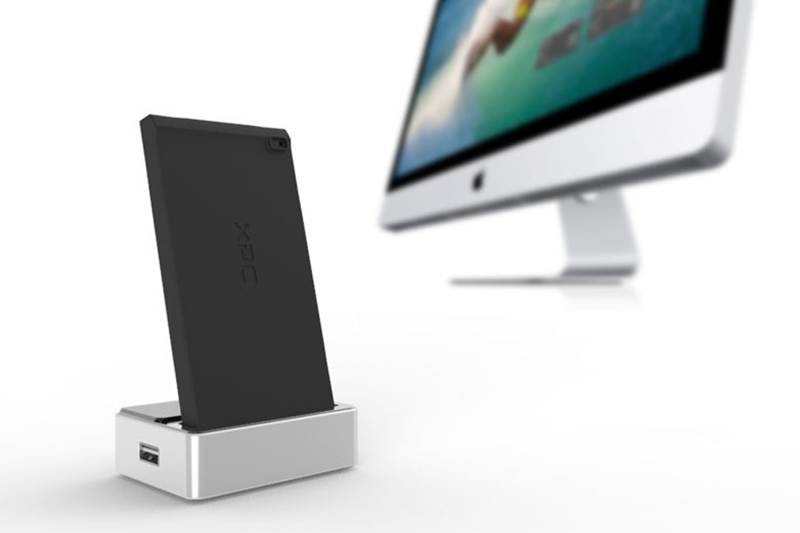

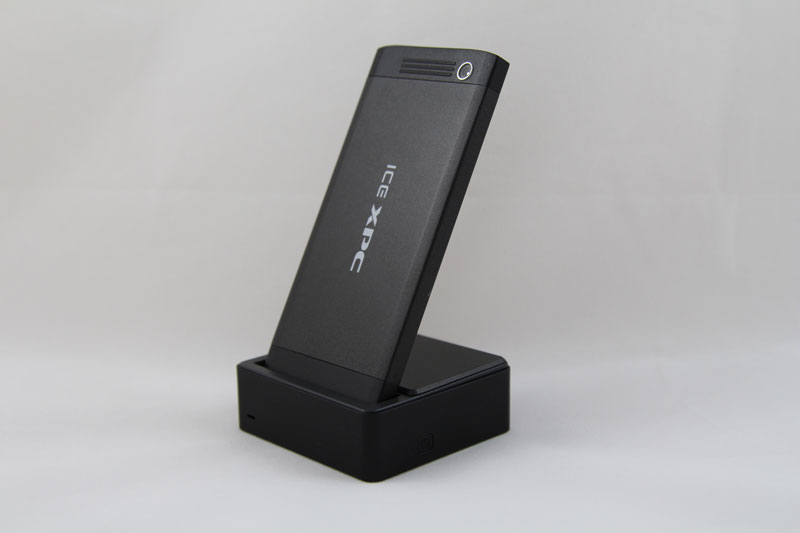

Versatile and compact, the ICE xAdapter™ dynamically converts your ICE xPC™ into a mini-desktop, set-top-box, or game box. Discover the power of modular computing.

The clever features of the ICE xAdapter™ bring the mini-desktop to an entirely new level. Cold dock your ICE xPC™ for a modular, ultra mobile PC that’s ideal for students or businesses alike.

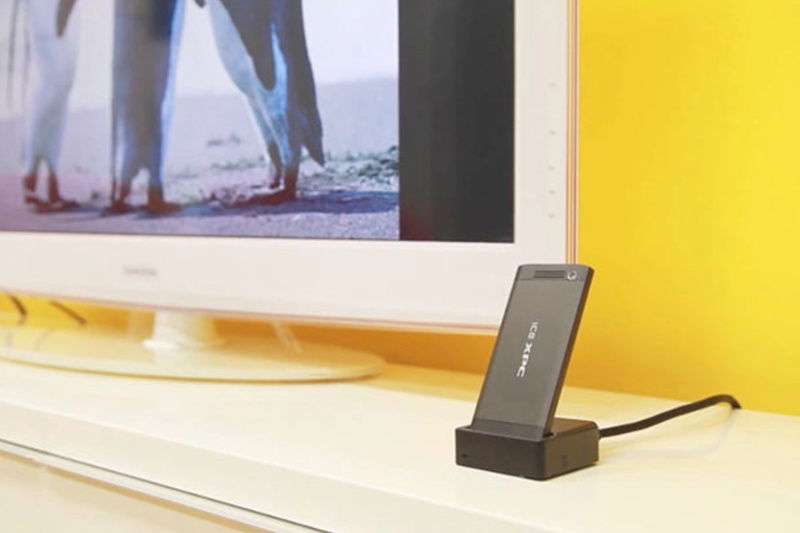

This novel docking unit also converts your home HDTV into a TV-PC for online Internet, communication, entertainment, or gaming.

Approximately half the size of a 2.5” SATA hard drive (slightly taller) the xAdapter™ travels easily with your ICE xPC™ for quick and easy use when and where you need it.

SPECIFICATIONS

Host Interfaces:
40pins xPDMI connector

Standard Built-in
Microphone jack
3.5-mm headphone mini-jack
Two USB 3.0 ports

External Display Connector:
HDMI output port

Optional
Up to four USB 3.0 ports
RJ45 Internet access port

BENEFITS

  1. Ultra portable breakout docking unit
  2. Modular ICE xPC™ component
  3. Connects up to four USB peripherals
  4. Simple and straightforward
  5. Low-cost
  6. Fast internet access via RJ45 connection

FEATURES

  1. Half the size of a 2.5” hard drive case form factor
  2. Modular computer docking device
  3. Plug-n-play

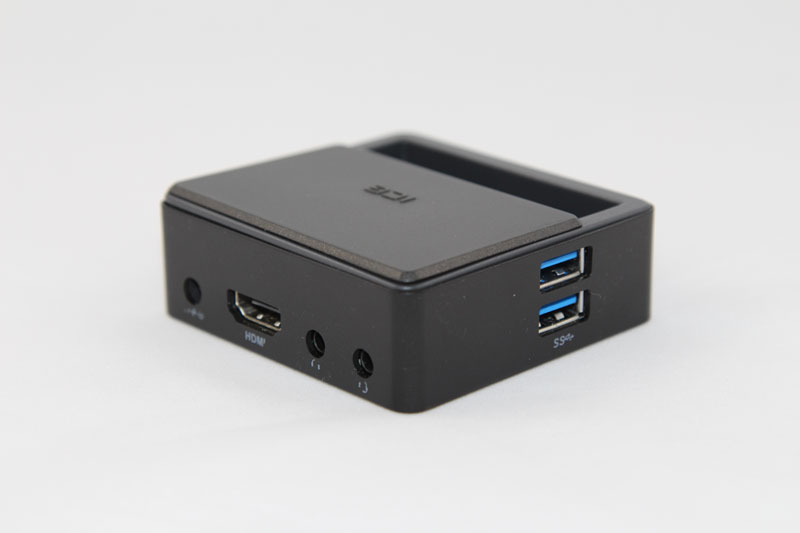

  4. Built-in USB3.0 and audio I/O ports
  5. RJ45 internet access port (optional)
  6. Built-in HDMI output port
  7. Support cold docking

Technical Details

General Specification
DATA TYPE  DATA
Brand Name  ICE
Series  x86
Series Number  Adp 2013
Hardware Platform  PC
Operating System  Decided by connected xPC™
Item Weight  TBD
Item Dimensions
L x W x H
3 x 2.75 x 1 inches
(76.2 x 69.8 x 25.4 mm)
Color  Black
xPC™ Connector 40 pins male xPDMI (extended PDMI)
Power Source AC
Model Specification
Interfaces
DATA TYPE  DATA
Model Number  ADP2013-001
Microphone One digital
Headphone minijack One 3.5mm
USB 3.0 Ports Two (Four optional)
RJ45 Connector One


"Specifications are subject to change without notice."
